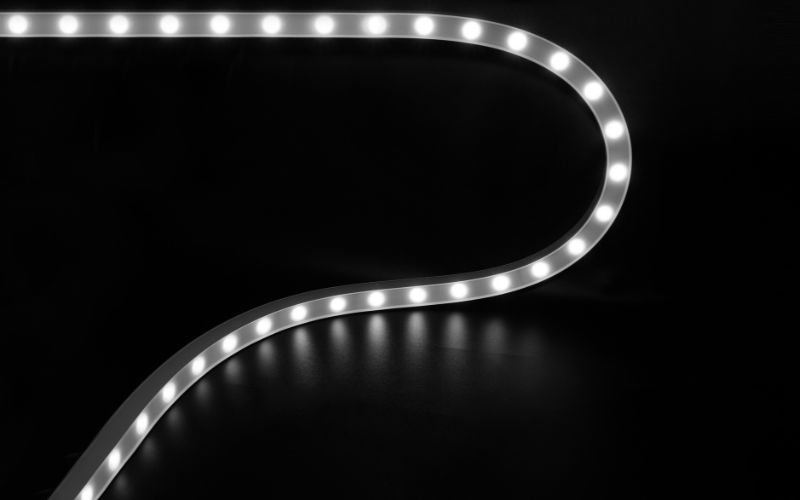

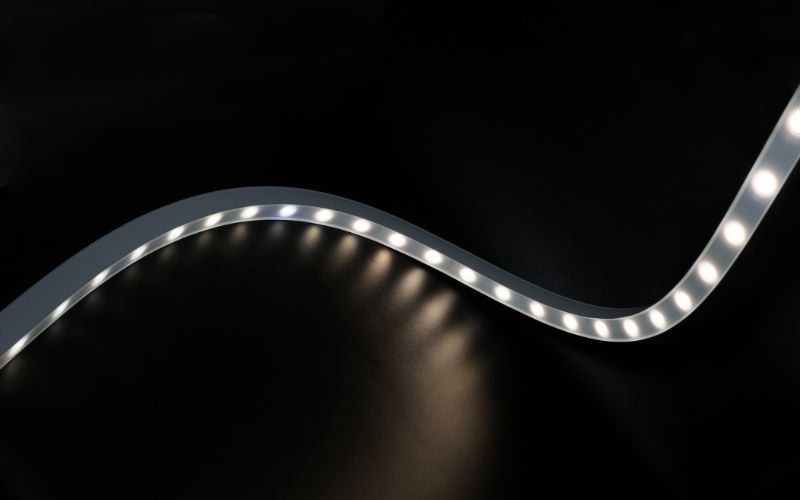

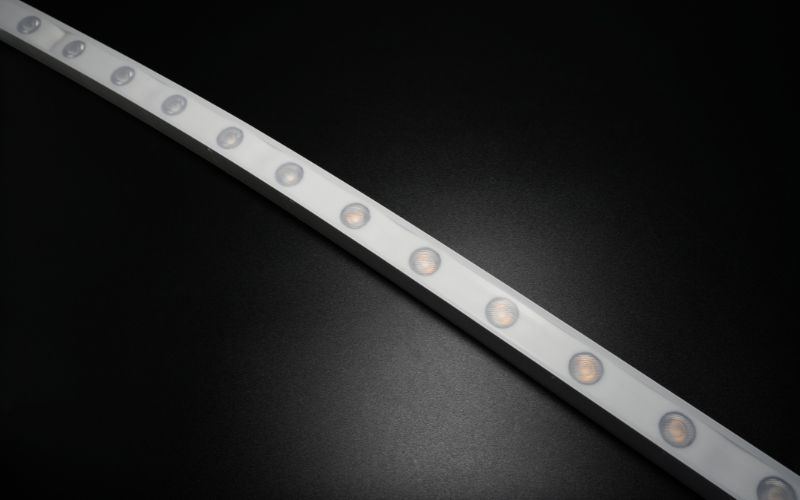

FlexWash - Architectural Flexible LED Wall Washer
- High-Performance Optical Precision
- Anti-glare Shield for Visual Comfort
- MacAdam Ellipse < 3 SDCM
- Factory-Sealed IP67 Silicone Extrusion
Charaterastic
1. Flexibility
-Constructed with high-flexibility Silicone material, allowing both horizontal and vertical bending.
-Perfect for curves, columns, and irregular surfaces, supporting creative lighting designs.
2. Length Customization
-Available in customized lengths up to 20 meters, minimizing joints and ensuring seamless light distribution.
-Tailored to fit complex installations with ease.
3. Uniform Lighting Effect
-Built-in high-brightness LED chips paired with professional optical design, ensuring soft and uniform wall-washing
effects with no dark spots.
4. High Waterproof Rating
-Double-sealed design with IP67 protection, making it suitable for wet, dusty, or extreme outdoor environments.
5. Easy Installation
-Lightweight design with flexible mounting brackets and multiple fixing options for quick and hassle-free installation.
Quick to Know
Family Matrix with five different size.
Bending angle: Φ＞80-120mm
Color temperature: Mono
Control method: ON/OFF DMX DALI 0-10V TRIAC
Technical Data
Model | SIZE(mm) | POWER(W/M) | Mono(LM) | Chromatic(LM) | VOLT | Download |
| FlexWash-06_1616 | W16xH16 | 18 W | 1350LM | 720LM | DC24V |
|
| FlexWash-06_2020 | W20xH20 | 20 W | 1400LM | 800LM | DC24V |
|
FlexWash-06_2420 | W24xH20 | 24 W | 1800LM | 960LM | DC24V | |
| FlexWash-06_2222 | W22xH22 | 24 W | 1800LM | 960LM | DC24V | |
| FlexWash-06_3525 | W35xH25 | 42 W | 3150LM | 1680LM | DC24V | |
Notes: Mono (2700K,3000K,3500K,4000K,4500K,5000K, Red, Green, Blue, Amber), | ||||||
Quick overview, save your valuable time
Family Matrix
FlexWash™
